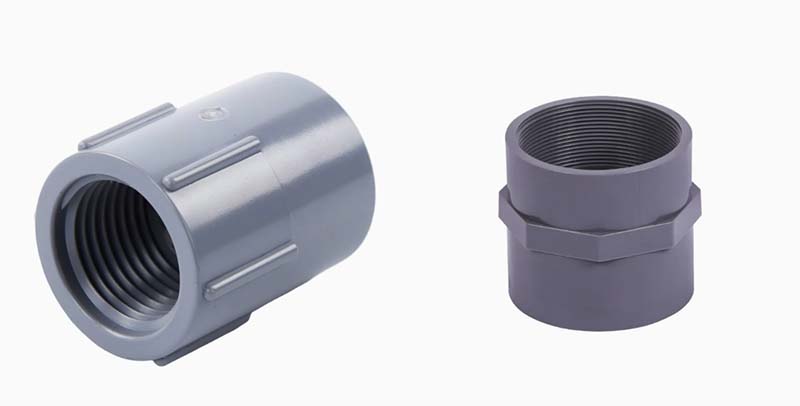

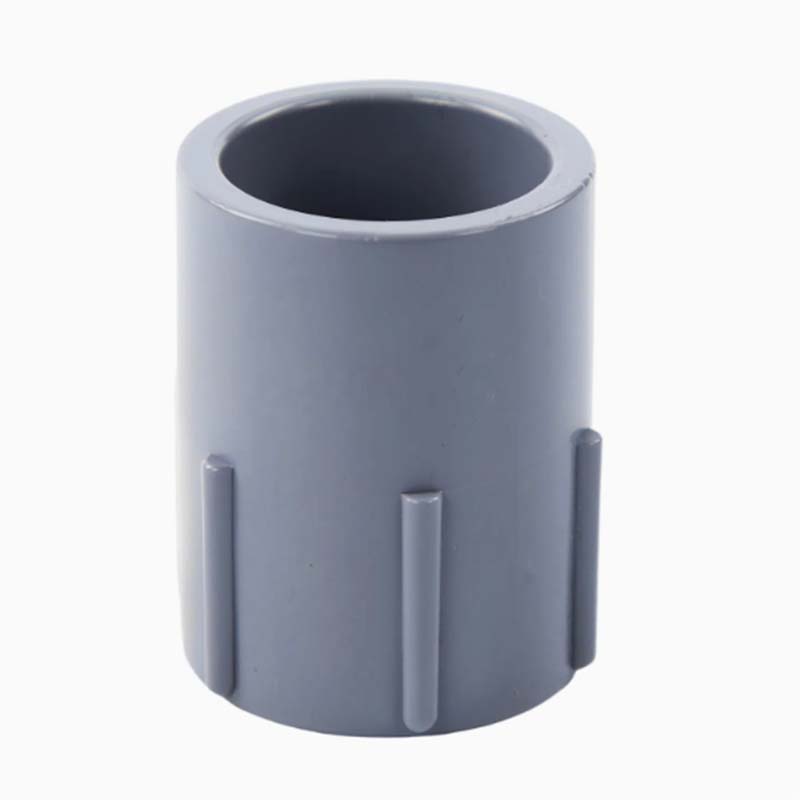

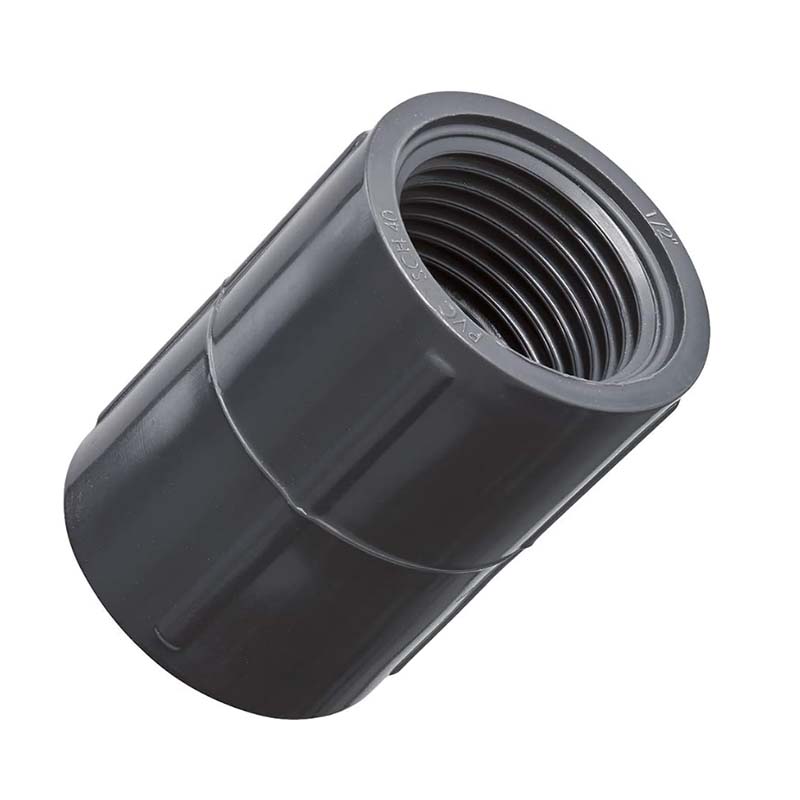

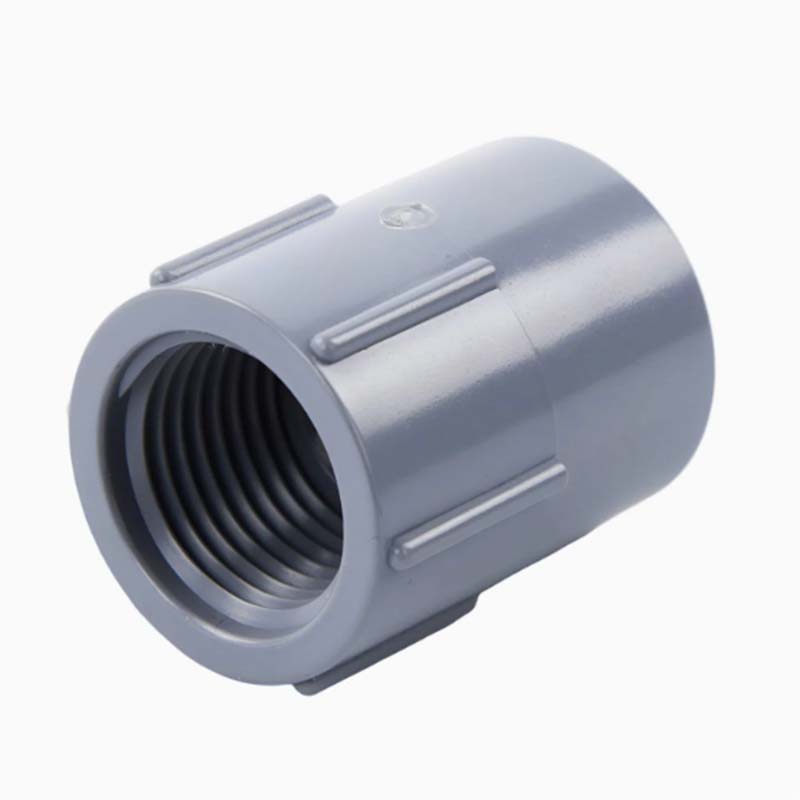

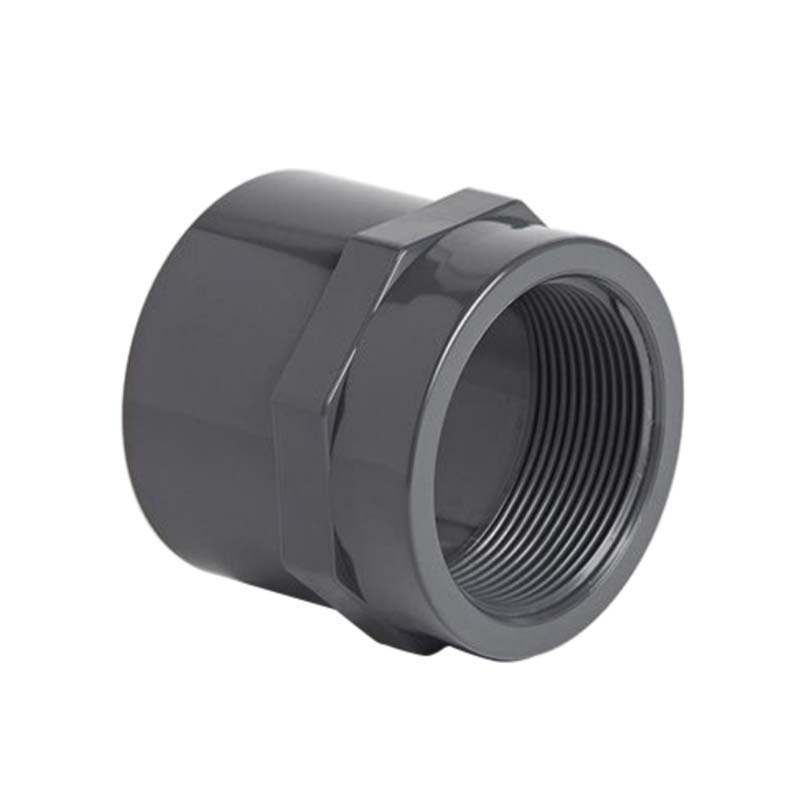

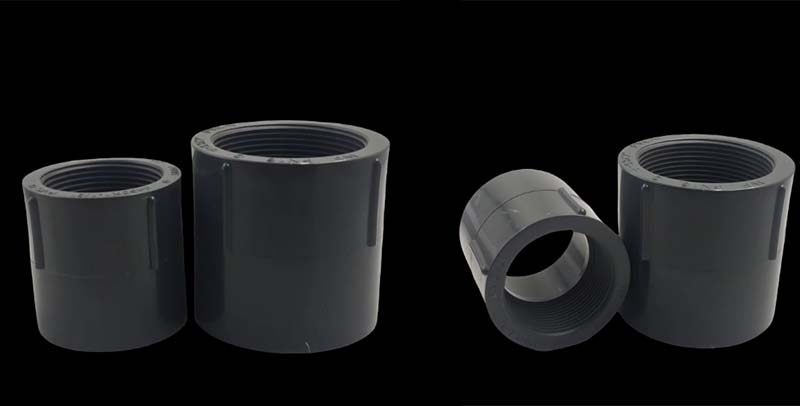

PVC Female Adapter
Eastboom®'s quality PVC Female Adapter is a PVC pipe fitting for connecting two male pipes. It is made of polyvinyl chloride (PVC) material that it's two sections are internally threaded, which ensures a safe and leak-free connection of the pipes.
Send Inquiry
Product Description
Introduction
PVC female adapters create a reliable connection between threaded components and PVC (polyvinyl chloride) pipes. These fittings are mainly used in plumbing, irrigation and industrial piping systems to connect different types of pipes. The end with internal threads provides security for externally threaded pipes, valves, and other accessories, yet the sleeve end connects to the PVC pipe by solvent welding. These fittings are corrosion-resistant, lightweight and easy to install that are mainly used in water supply, irrigation, chemical treatment and drainage systems.
Parameter (Specification)
|
Parameter |
Value / Description |
|
Material |
PVC (Polyvinyl Chloride) |
|
Color |
Grey / White (based on manufacturer standards) |
|
Size Range |
1/2",3/4”,1”,1-1/4”,1-1/2”,2”2-1/2”,3”,4"(15mm to 110mm) |
|
Thread Type |
BSPT/NPT Female Threads |
|
Connection Ends |
One end female threaded, one end solvent weld |
|
Working Pressure |
Up to 150 PSI (depends on size/system) |
|
Temperature Range |
0°C to 60°C (32°F to 140°F) |
|
Standard Compliance |
ASTM D2466, ISO 1452, DIN standards |
Feature And Application
Feature：
PVC female adapter will not rust like metal that can be used in extremely harsh environments, which are corrosion and chemical resistant, and it can be used for a long time in high pressure environments. It is easy to install and operate, reducing labor and handling costs. The threaded structure design allows for a tighter connection. PVC is more economical than metal female connectors. This connector meets NSF/ANSI 61 standards then can be safely used in drinking water.
Application:
PVC female adapter can be used in water supply lines to connect residential and commercial pipes; sprinkler and drip irrigation systems; industrial pipes to transport chemicals, acids and non-potable water; pool and spa pipes to resist chlorine and other chemicals and wastewater and sewage systems to handle drainage and sewage transfer.
